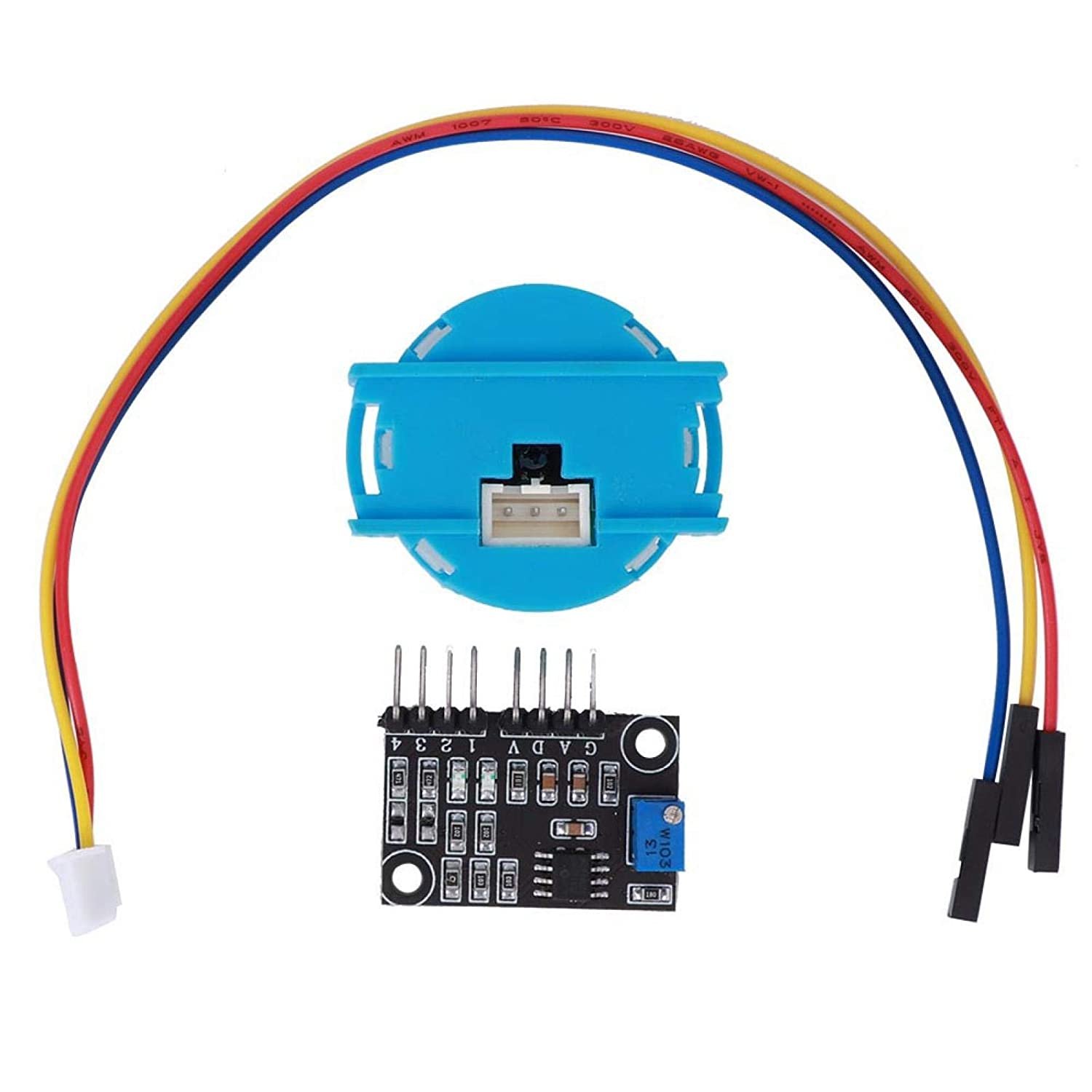

Turbidity Sensor Module, 5V DC TS‑300B Easy to Use High Precision Turbidity Detection Module, Portable for Measuring Washing Machines Industry

1. Easy to use and high measurement accuracy, can be used to measure the degree of water pollution of washing machines, dishwashers and other products
2. Can be used for industrial on‑site control, environmental sewage collection and other requiring turbidity detection and control
3. Judge whether the turbidity of water exceeds the standard, so as to give early warning or linkage to other equipment

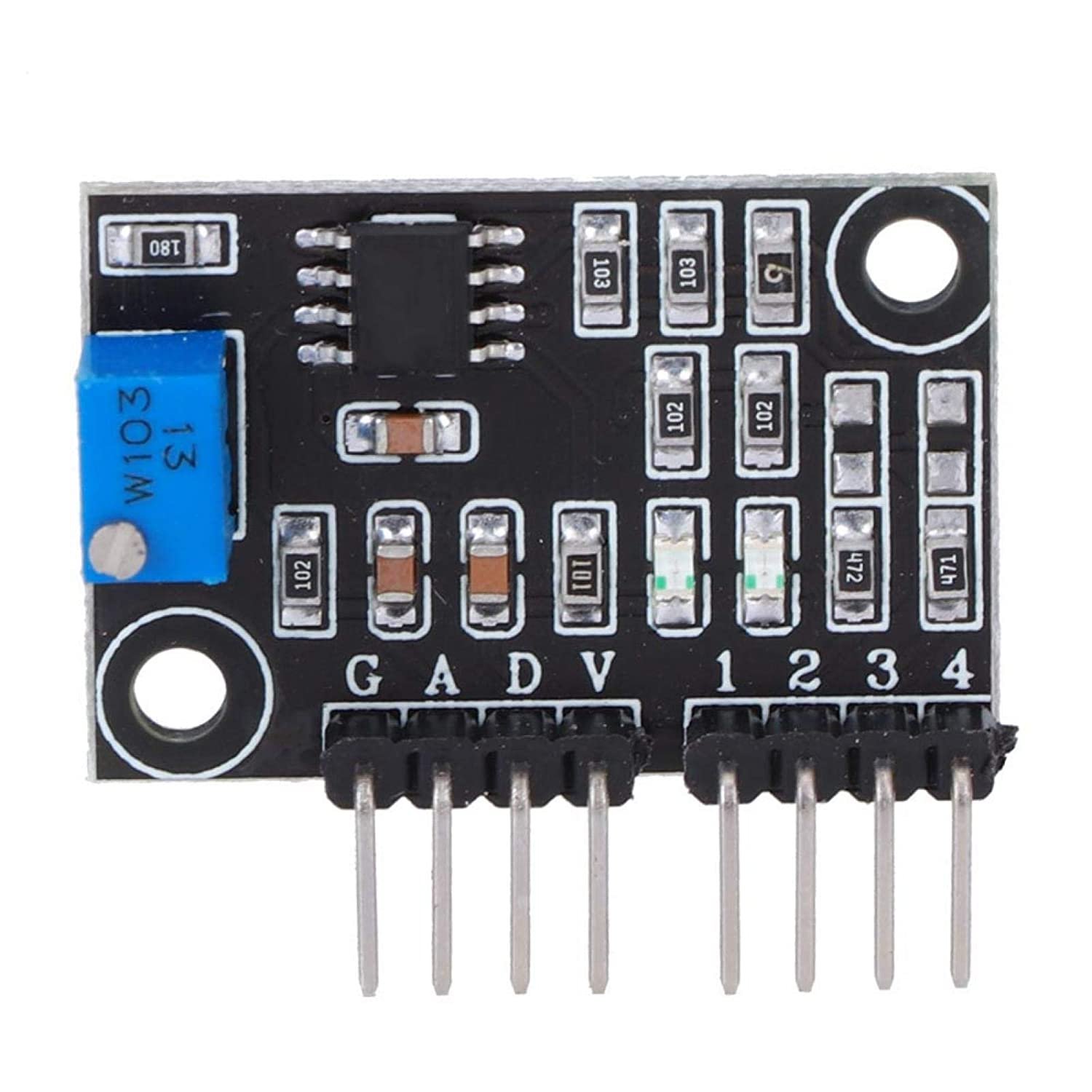

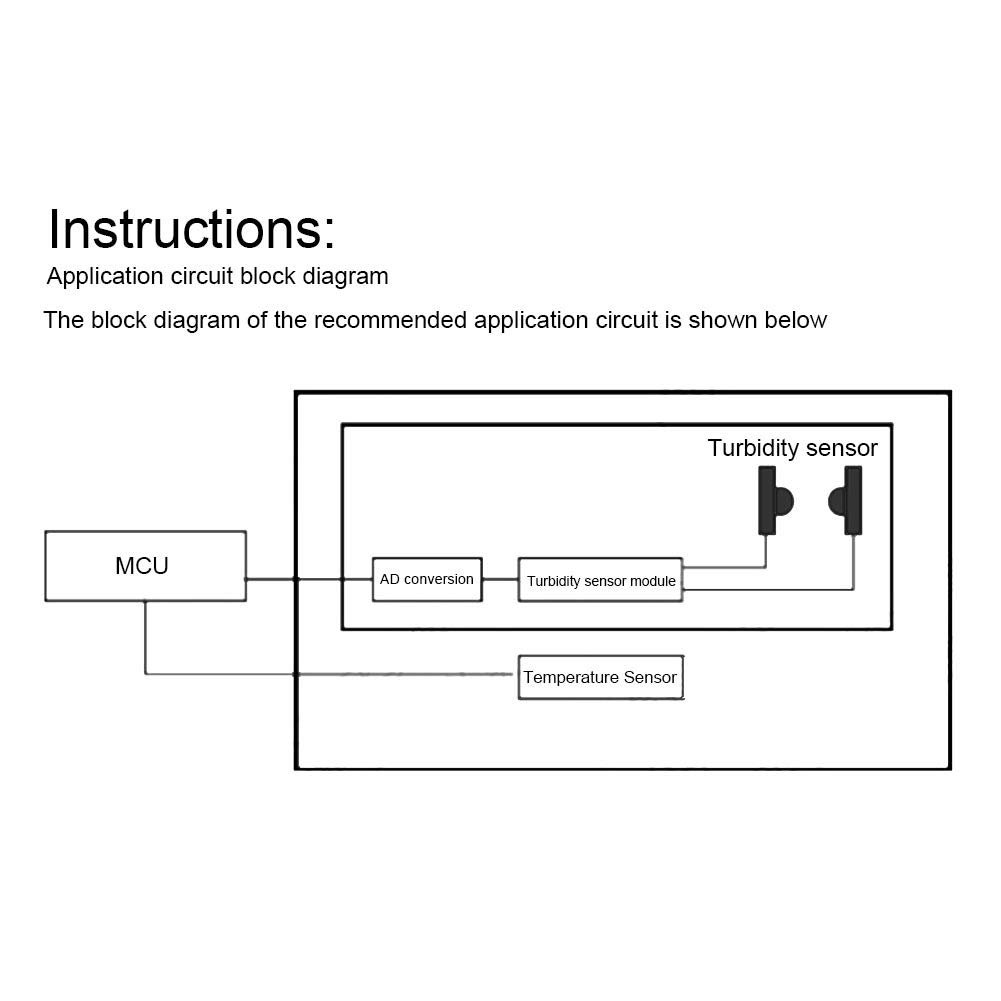

4. The turbidity sensor module converts the current signal output by the sensor into a voltage signal, and performs AD conversion data processing through the single‑chip microcomputer.
5. Small size, easy to carry and store, convenient to use and with good performance

Spec:

Item Type: Turbidity Sensor Module

Material: Synthetic cardboard
Working Voltage: 5.00V DC
Working Current: 40MA (maximum)
Response Time: <500MS>Insulation Resistance: 100MΩ (minimum)
Output Mode: Digital output
Analog Output: 0~4.5V

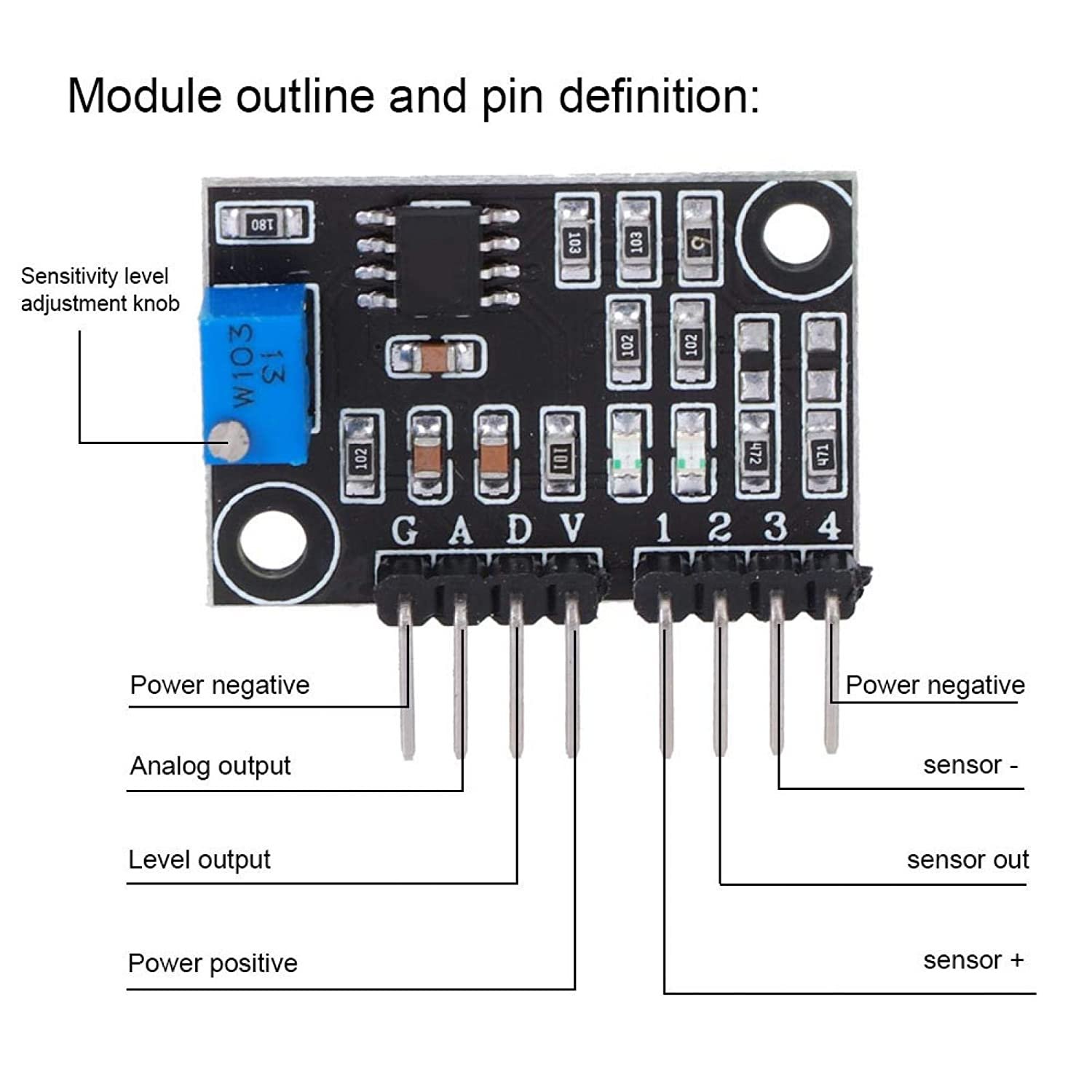

Digital Output: High/low level signal (you can select the corresponding national value by adjusting the potentiometer)
Operating Temperature: -20℃~90℃
Sensor Interface: XH2.54
Product Description:
Water turbidity refers to the degree of turbidity caused by suspended substances such as sand, clay, organic matter, plankton and microorganisms in the water. Industrial-grade turbidity sensors or turbidity meters are expensive, and the cost is too high in the designed of electronic products to be suitable for selection; therefore, we chose a turbidity sensor that is widely used in household appliances, washing machines and dishwashers. The sensor uses optical principles to comprehensively judge the turbidity condition through the light transmittance and scattering rate in th
