4 Wire Resistive Touch Screen

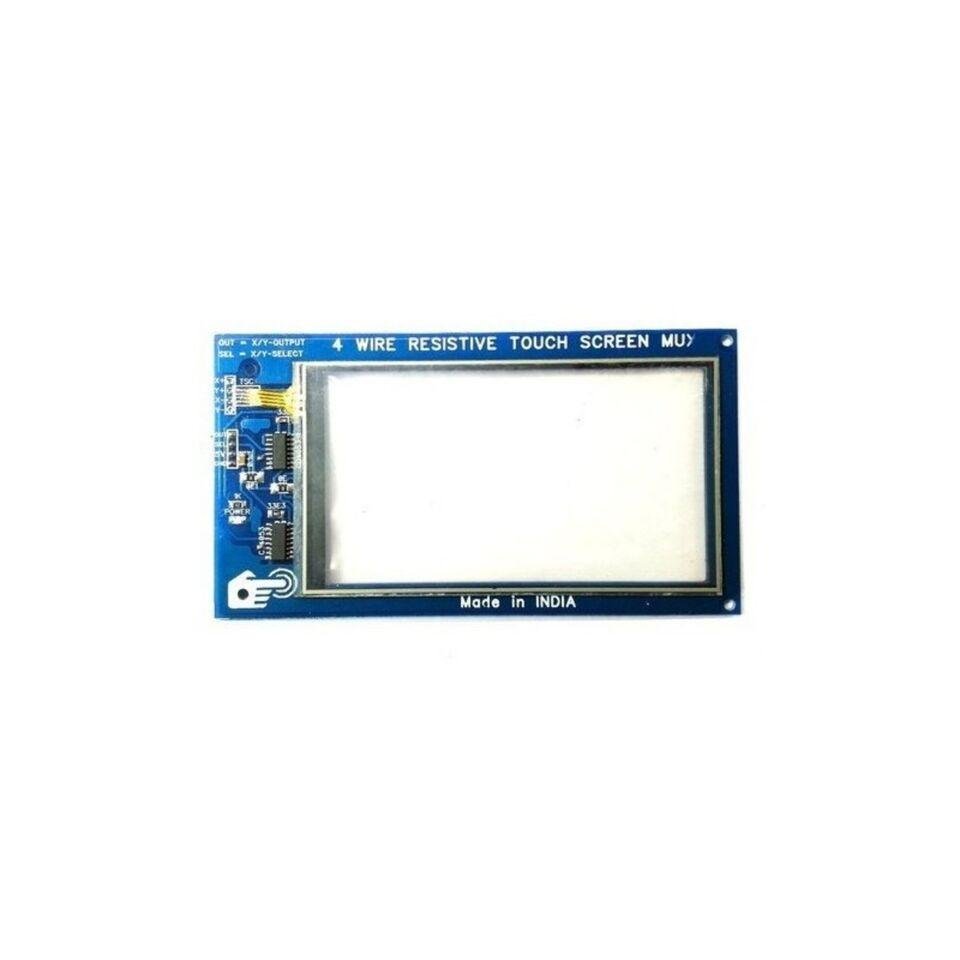

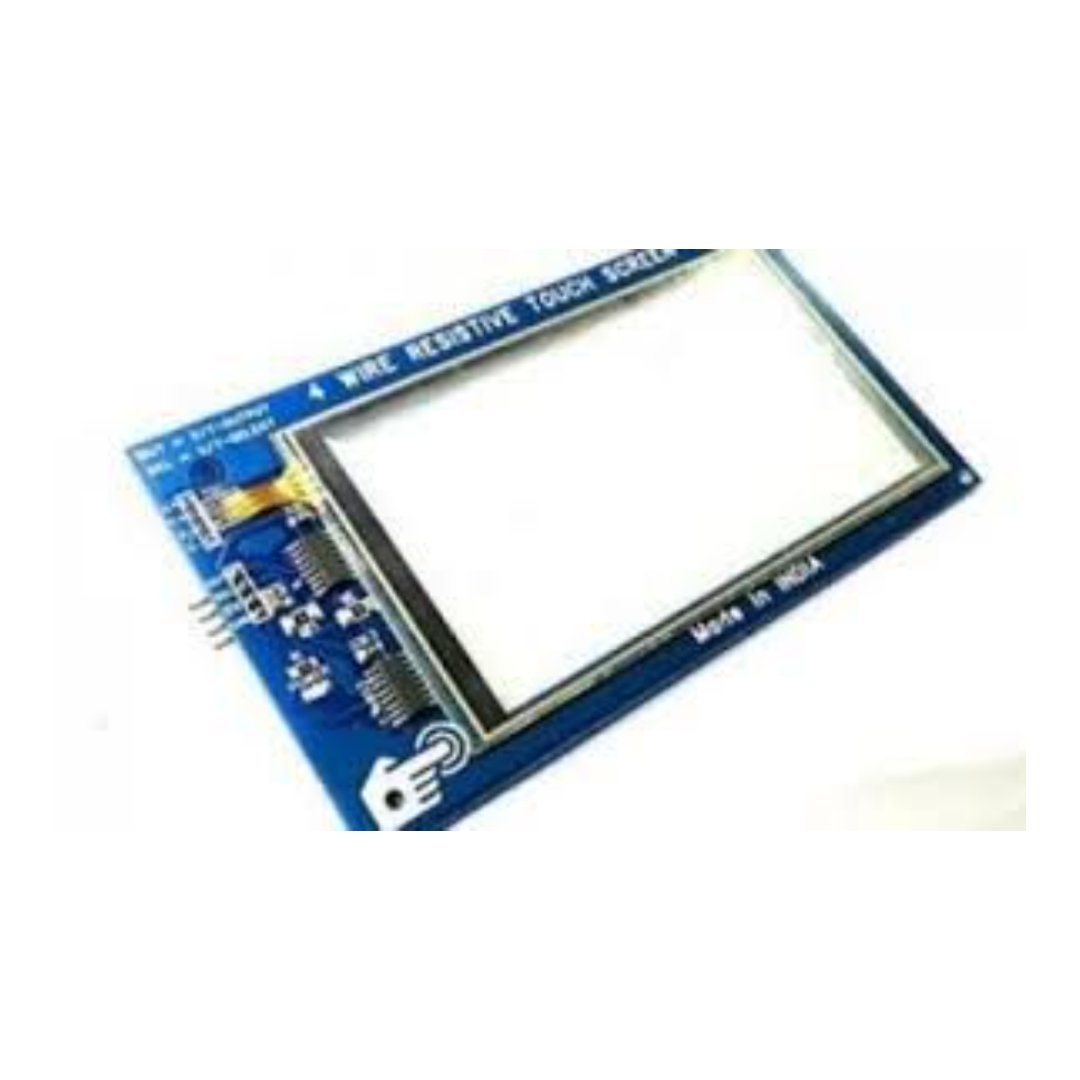

This is a 4 wire resistive touch screen mux break out baord which can be used with any graphical lcd in the back groung. It adapts analog by touching the screen on any given point and you will get analog voltage on the corresponding axis.

"X" Axis:

Moving from left to right the voltage remains constant and moving from top to bottom the voltage varies, (select pin should be active heigh).

"Y" Axis:

Moving from top to bottom the voltage remains constant and moving from left to right the voltage varies, (select pin should be active low).

Package Includes:

• 1 x 4 Wire Resistive Touch Screen

4 Wire Resistive Touch Screen Specifications
