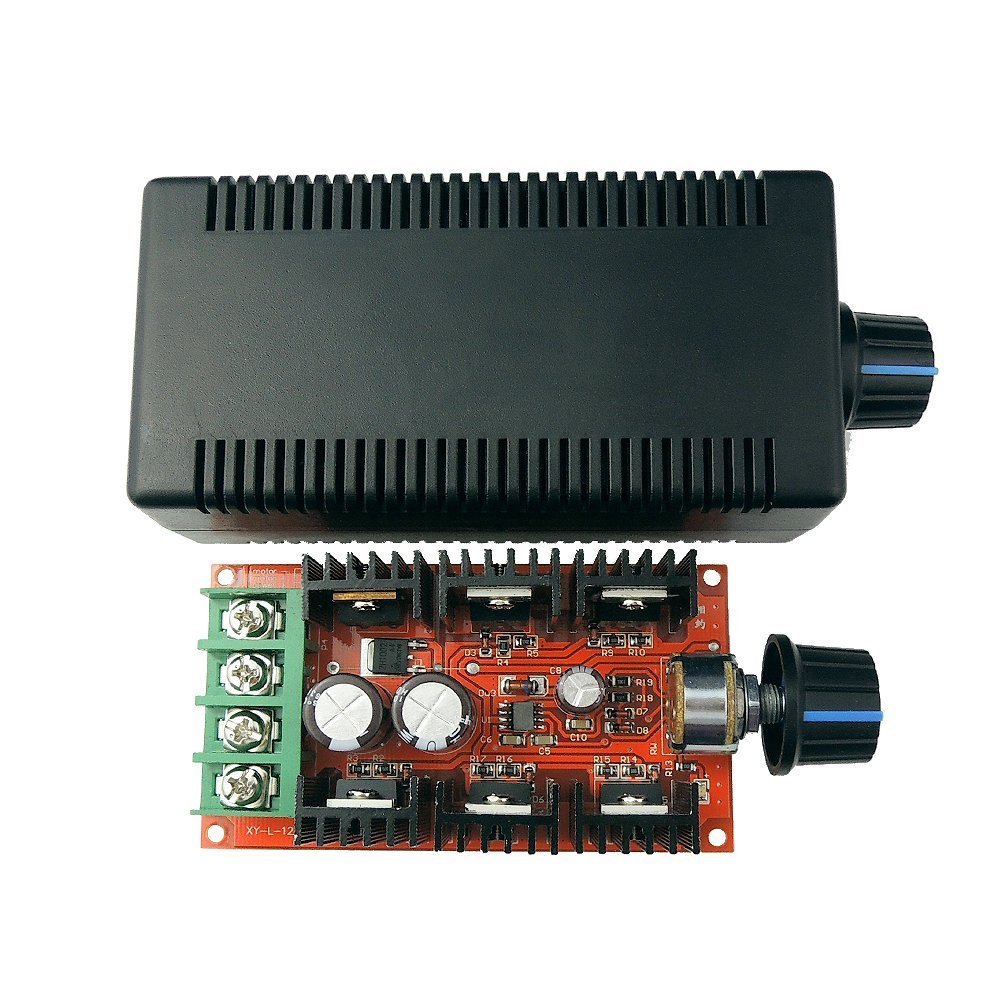

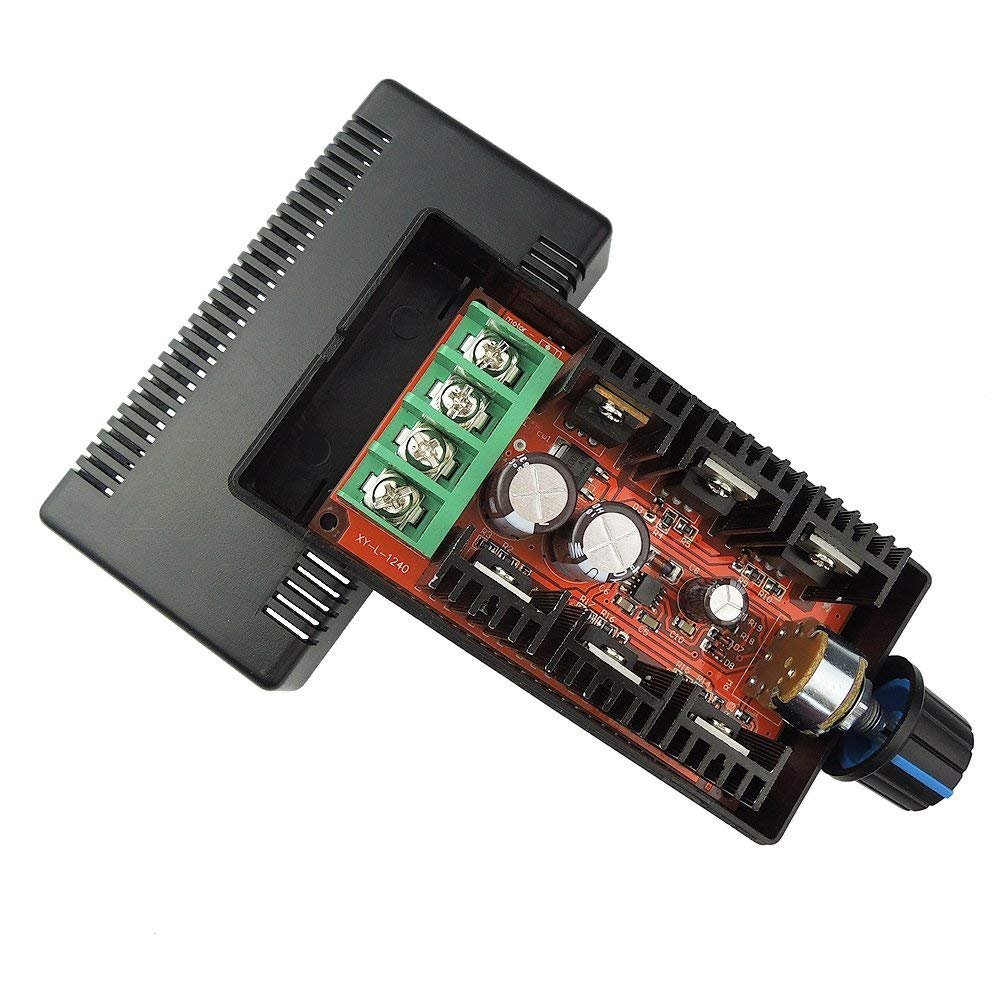

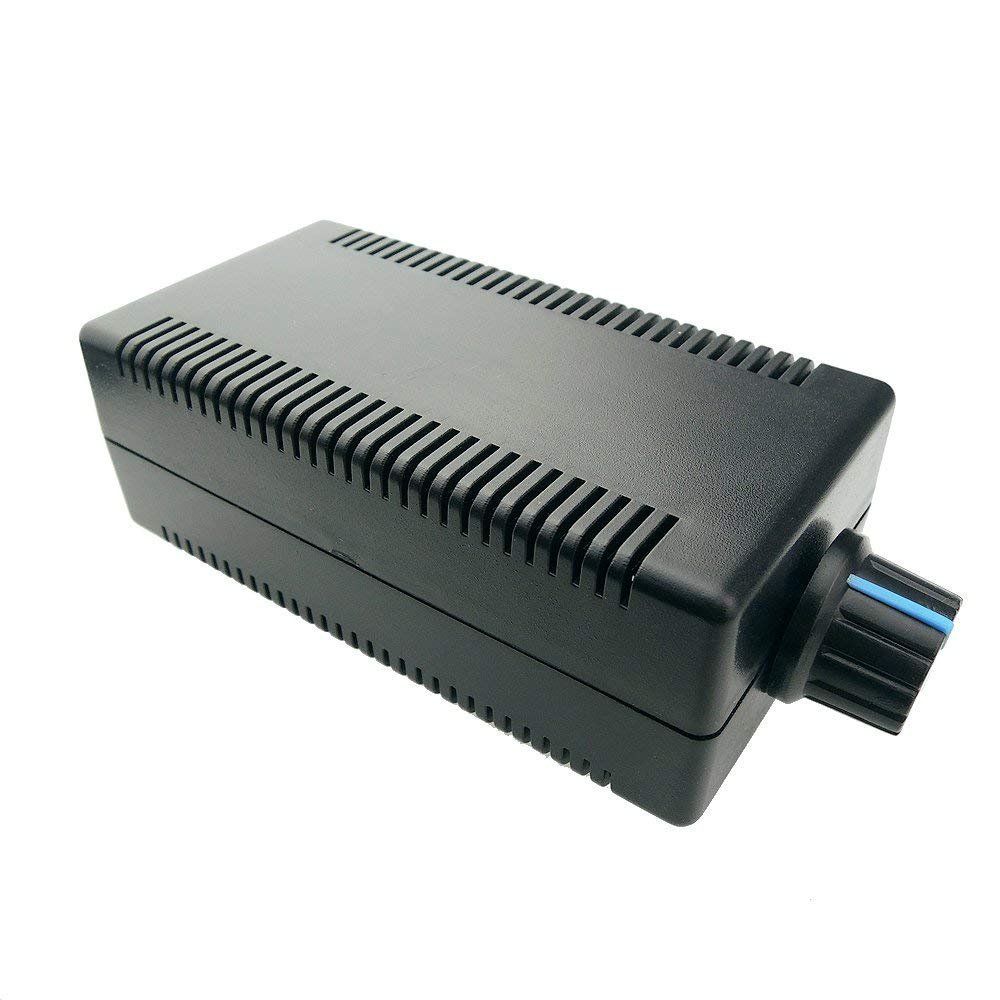

12V 24V 36V 48V 40A 2000W PWM DC Motor Controller Adjustable Variable speed Switch HHO Driver

Brand: Robo Inventors

5.03 35
35 review

MRP : 1500.00

Price : 1180.00 FREE Delivery ( Inclusive of all taxes )

You Save: 320

Sold By: Unicorpse

  • Input supply voltage: 10V-50VDC
  • PWM frequency: 200Hz; Duty Cycle adjustable: 5%-100%
  • Item size:4.25*2.17*1.5 inches (size of the shell); Operation environment temperature:-20℃-40℃
  • Output power: 0.01W-2000W(max)
  • The maximum continuous output current :30A; Peak current is up to 40A.
10 Available
Buy Now

SKU: TH2052TH132

Categories:Robotics, Sensor

Tags : 12V 24V 36V 48V 40A, 2000W PWM, DC Motor


Features: Xy-l-1240 dc motor speed controller provides variable speed capability for dc motor. Adjustable speed range is 5 percent-100 percent. Output power : 0.01-2000w(max). 12v:480w(max), 24v:960w(max), 36v:1440w(max), 50v:2000w(max) the use of ambient environment temperature is -20ƒ(-4‰) to 40ƒ(104‰) potentiometer with switch function. Operating instruction: Before you attempting to wire the controller, make sure power is off. Warning: Do not reverse postive and negative power loads.This will damage the controller. To change motor direction, interchange the positive and negative wires of motor. 1.Connect wires refer to the "wiring diagram" (no.6 picture). (It is recommended to add an appropriately rated fuse inline with the positive supply.) 2. Turn on the power. The led lights, the power is ok. 3. Adjust the potentiometer. Package including: 1 x dc motor speed controller
