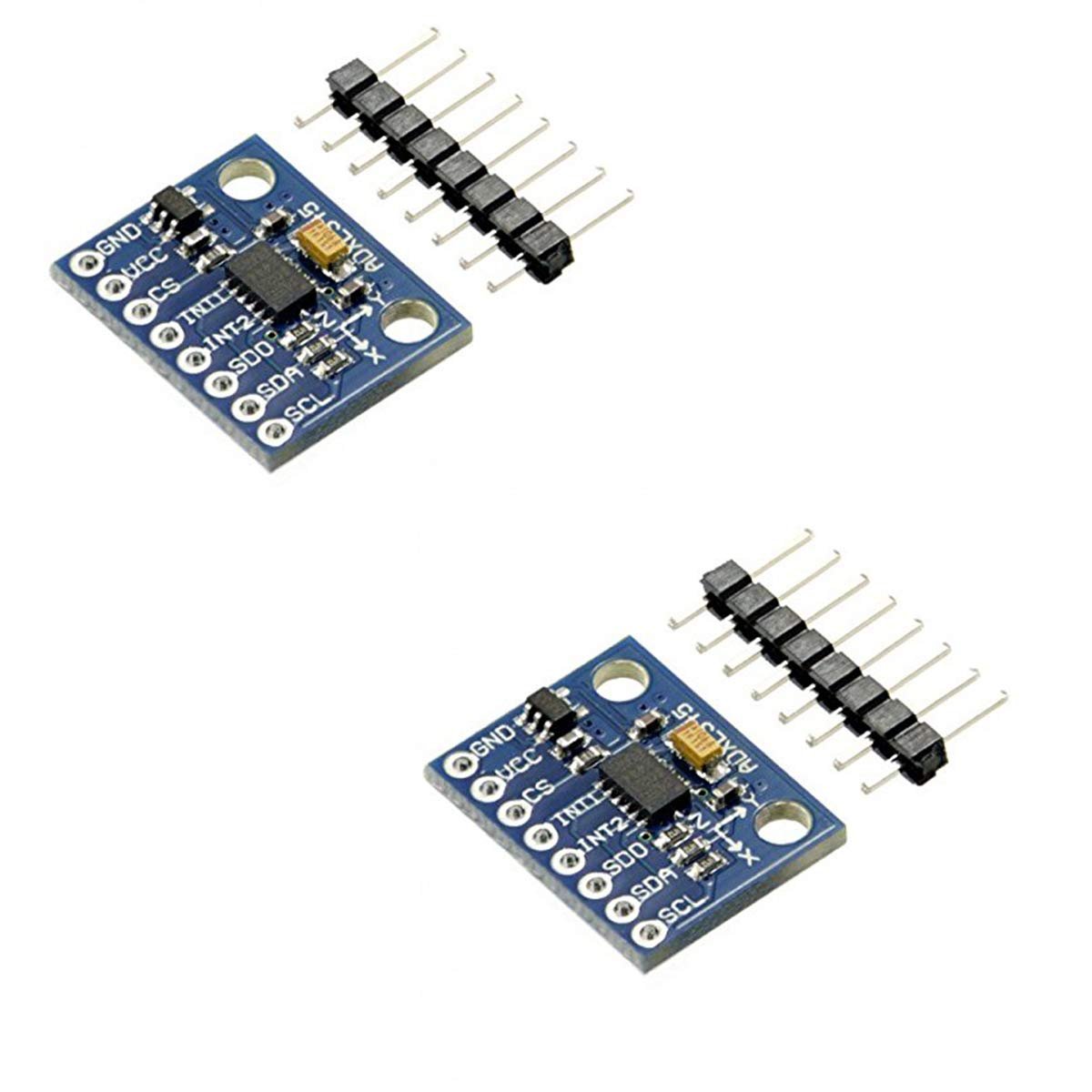

ADXL345 3-Axis Tilt Digital Gravity Acceleration Sensor Module. - (Pack of 2)

Brand: Robo Inventors

7.65 23
23 review

MRP : 1000.00

Price : 460.00 FREE Delivery ( Inclusive of all taxes )

You Save: 540

Sold By: Unicorpse

  • 3V-6V DC Supply Voltage | Onboard LDO Voltage regulator
  • Built in Voltage level convertor (MOSFET based)

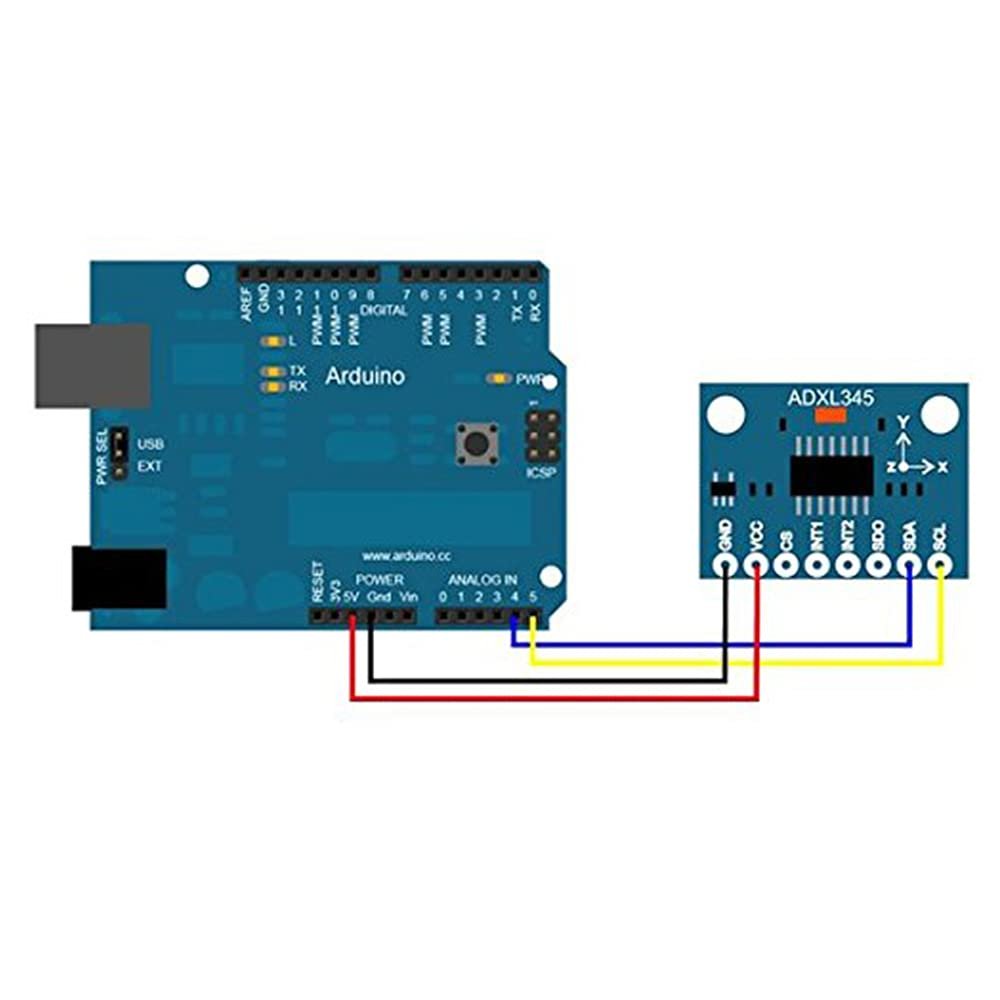

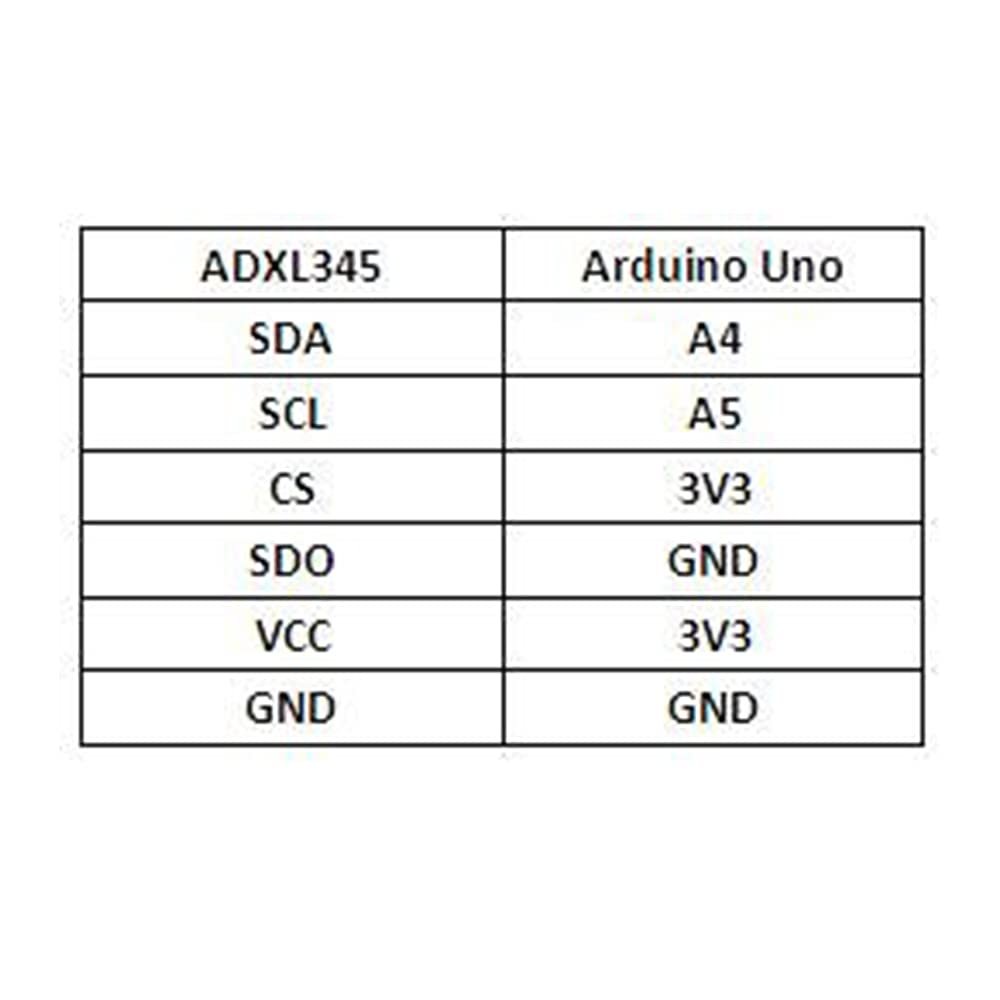

  • Can be interface with 3V3 or 5V Microcontroller | SPI and I2C interfaces
  • Ultra Low Power: 40uA in measurement mode, 0.1uA in standby@ 2.5V.
10 Available
Buy Now

SKU: TH2076TH151

Categories:Robotics, Sensor

Tags : ADXL345, Sensor Module.

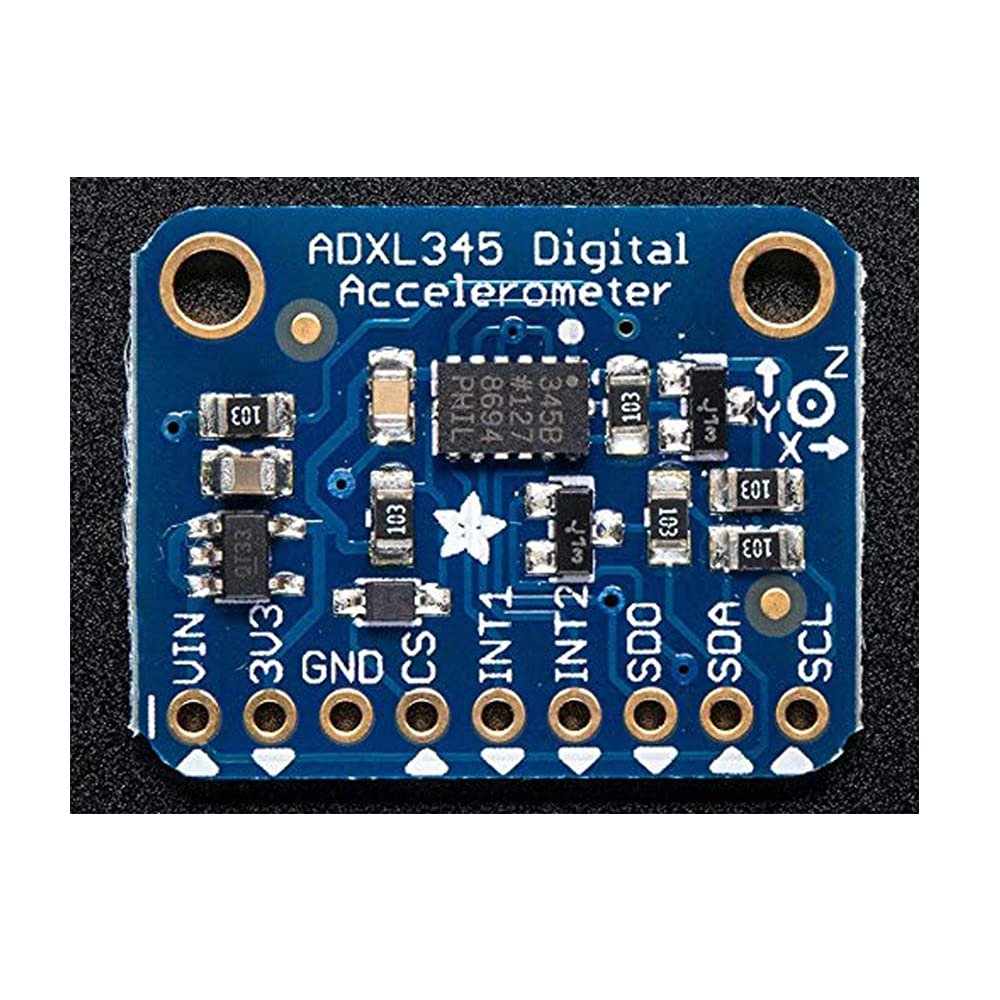

ADXL345 Triple Axis Accelerometer Board is a small, thin, low power, 3-axis accelerometer with high resolution (13-bit) measurement at up to ±16g. Digital output data is format as 16-bit twos complement and is accessible through either an SPI (3- or 4-wire) or I2C digital interface. The ADXL345 Triple Axis Accelerometer Board is well suited for mobile device applications. It measures the static acceleration of gravity in tilt-sensing applications, as well as dynamic acceleration resulting from motion or shock. Its high resolution (4 mg/LSB) enables measurement of inclination changes less than 1.0°. The device offers a variety of special detection features. Active and Inactive Detection Detects the presence or absence of motion by comparing the acceleration on any axis with a user-set threshold. Percussion detection function can detect any direction of single vibration and double vibration action. Free fall detection function can detect whether the device is falling. These functions can be independently mapped to one of two interrupt output pins. The patented integrated memory management system uses a 32-level first-in-first-out (FIFO) buffer to store data, minimizing host processor load and reducing overall system power consumption. Package Includes: 1 x ADXL 345 Module Specifications: Supply Voltage: 3.3 V/ 5V Interface Type: I2C, SPI Sensing Range: ±2g, ±4g, ±8g, ±16g X : 28.6 LSB/g Y: 31.2 LSB/g Z: 34.5 LSB/g Dimensions : 3 x 2 x 1cms  Weight: 5 grams
