MAX6675 Module + K Type Thermocouple Sensor Measure 1024°C Temperature

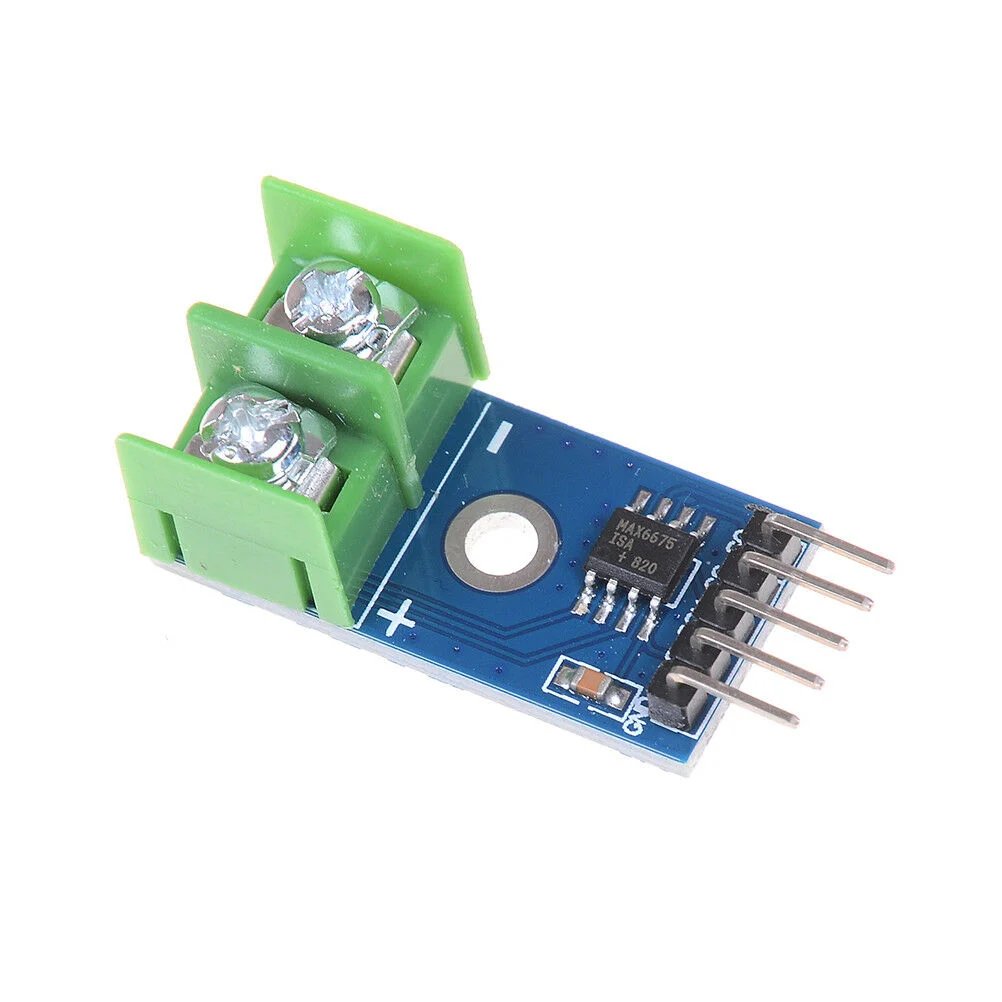

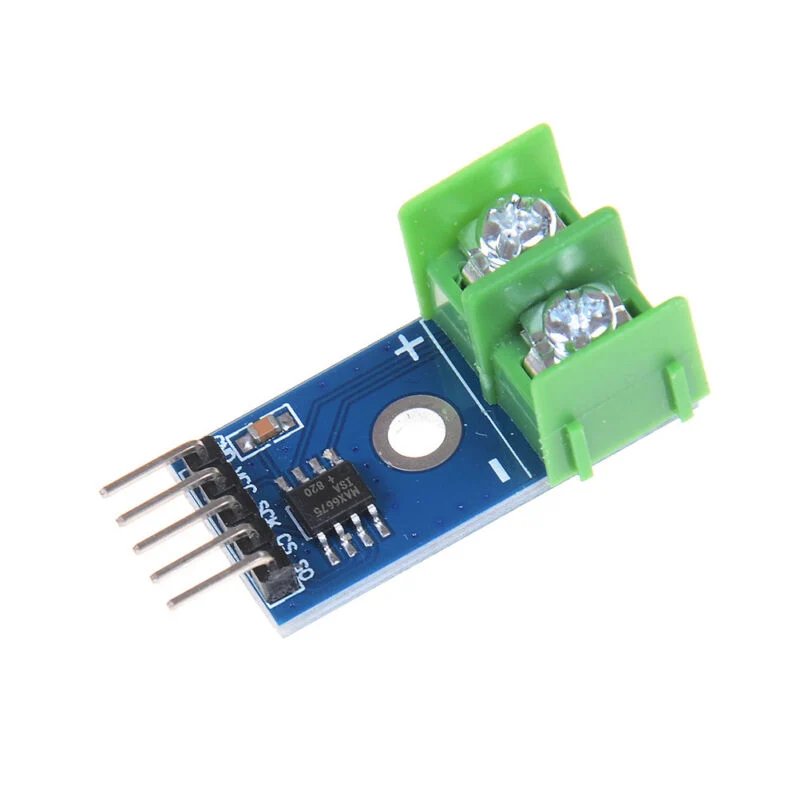

This MAX6675 Module + K Type Thermocouple Sensor Measure 1024°C Temperature sensor makes use of the Maxim MAX6675 K-Thermocouple to digital converter IC to provide a microcontroller compatible digital serial interface (SPI compatible) for giving an accurate temperature compensated measurement of the supplied K-Type thermocouple sensor.Pretty simple stuff.   Keep the note about the thermocouple polarity in mind as you make these connections.

Copy and Paste the Arduino MAX6675 Sketch:

// Sample Arduino MAX6675 Arduino Sketch

#include "max6675.h"

int ktcSO = 8;
int ktcCS = 9;
int ktcCLK = 10;

MAX6675 ktc(ktcCLK, ktcCS, ktcSO);


void setup() {
  Serial.begin(9600);
  // give the MAX a little time to settle
  delay(500);
}

void loop() {
  // basic readout test

   Serial.print("Deg C = ");
   Serial.print(ktc.readCelsius());
   Serial.print("t Deg F = ");
   Serial.println(ktc.readFahrenheit());

   delay(500);
}

If you are unfamiliar with installing Arduino libraries, you can read this page.

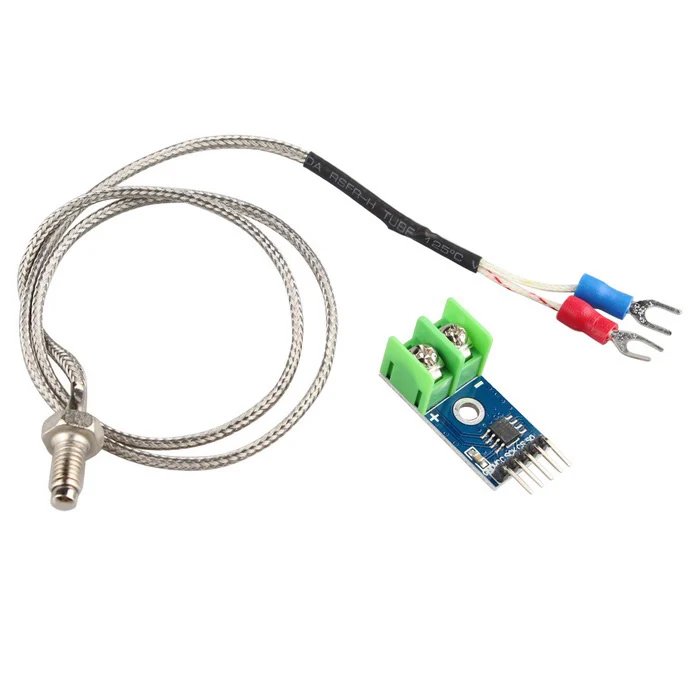

Package Includes :

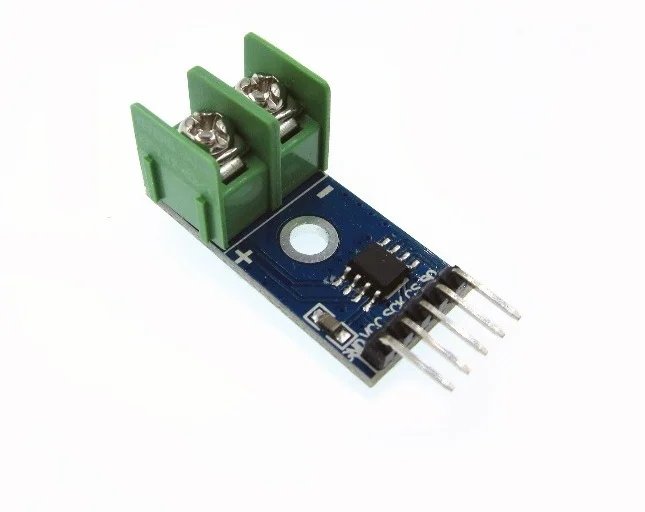

1 x MAX6675 Module.

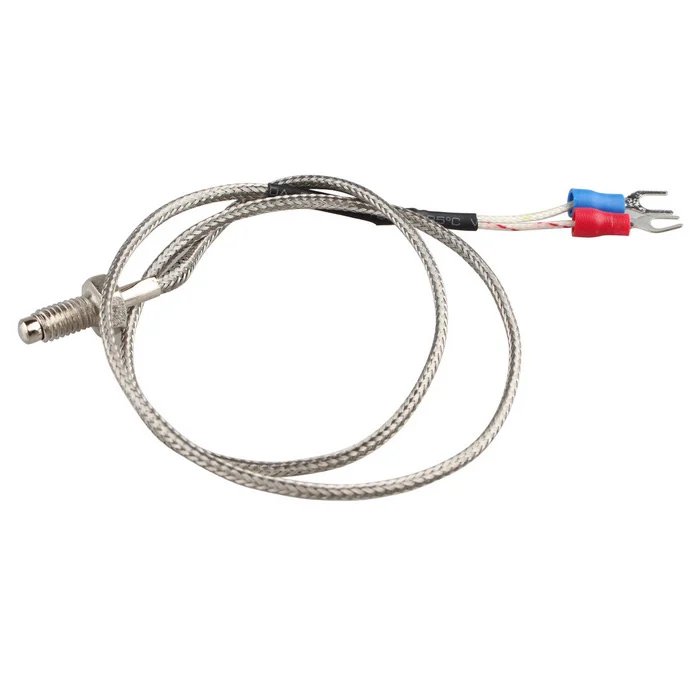

1 x K type Thermocouple.
4 x F-F Jumper Cable.
