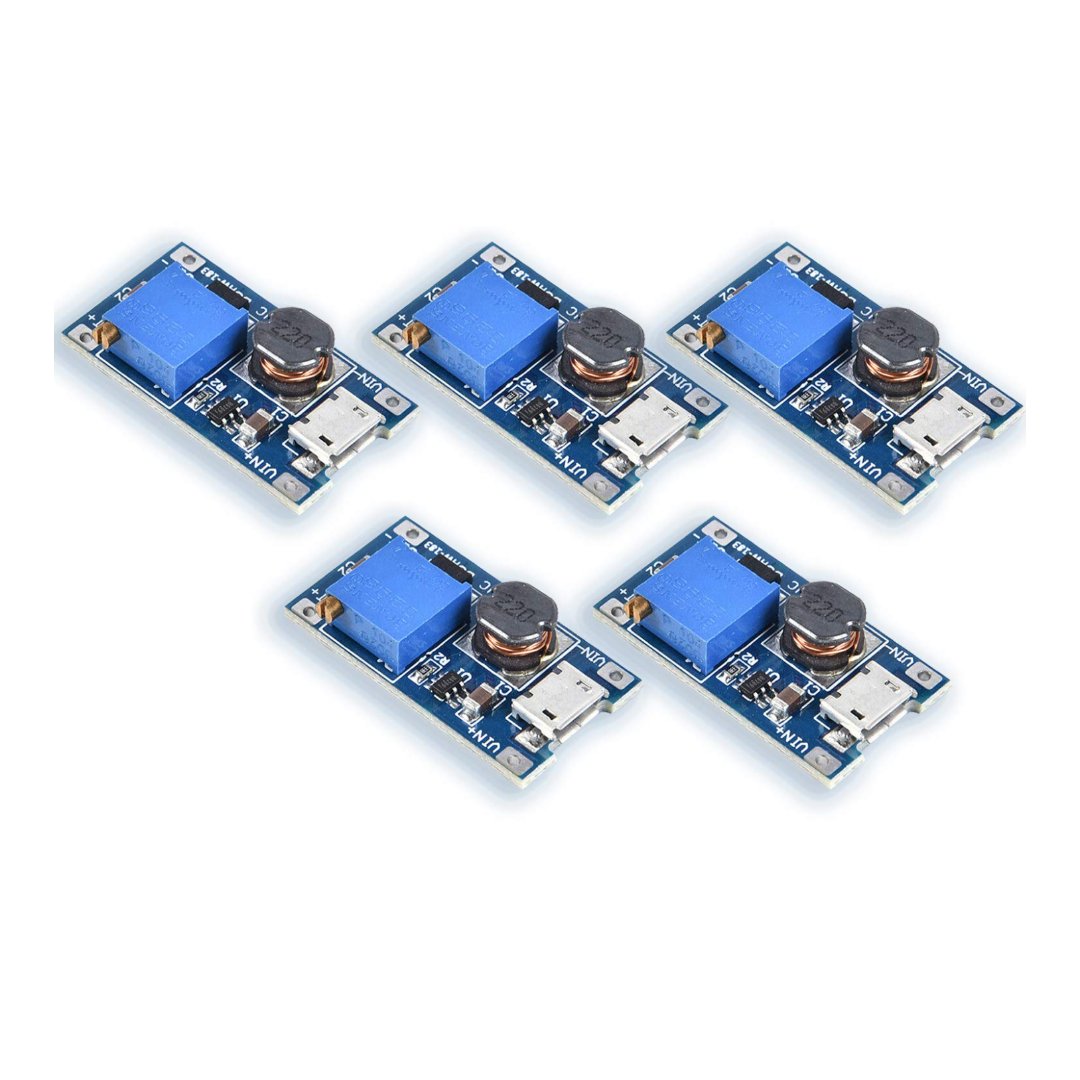

ICMs DC TO DC Step Up Module Kit/board/PCB, DIY Mini Voltage Buck Boost/Booster Adjustable Power Supply converter Adapter/Regulator/Convert 5V to 12v 9V - (5 pcs )

Brand: Robo Inventors

23 review

MRP : ~~1500.00~~

Price : 820.00 FREE Delivery ( Inclusive of all taxes )

You Save: 680

Sold By: Unicorpse

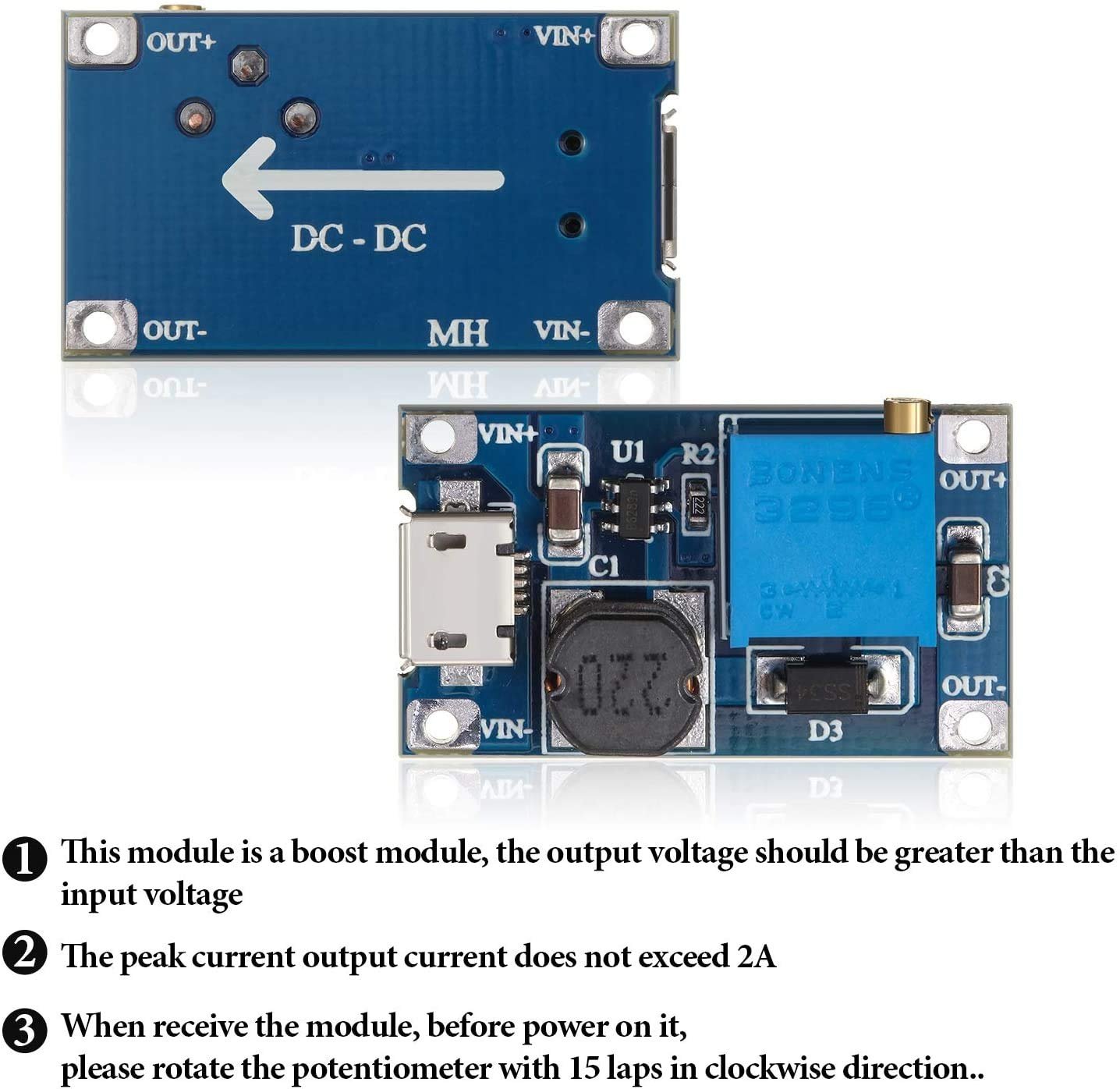

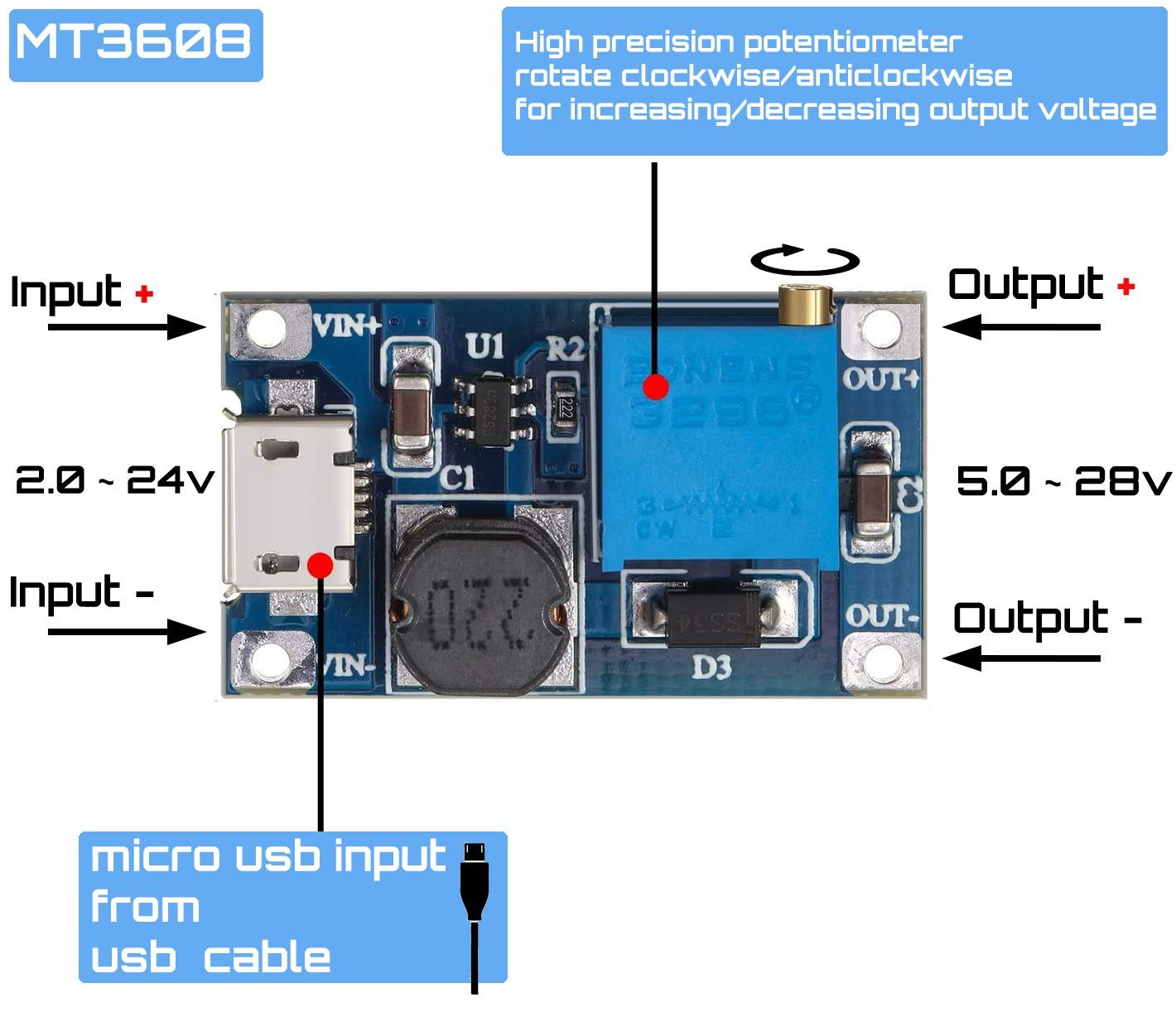

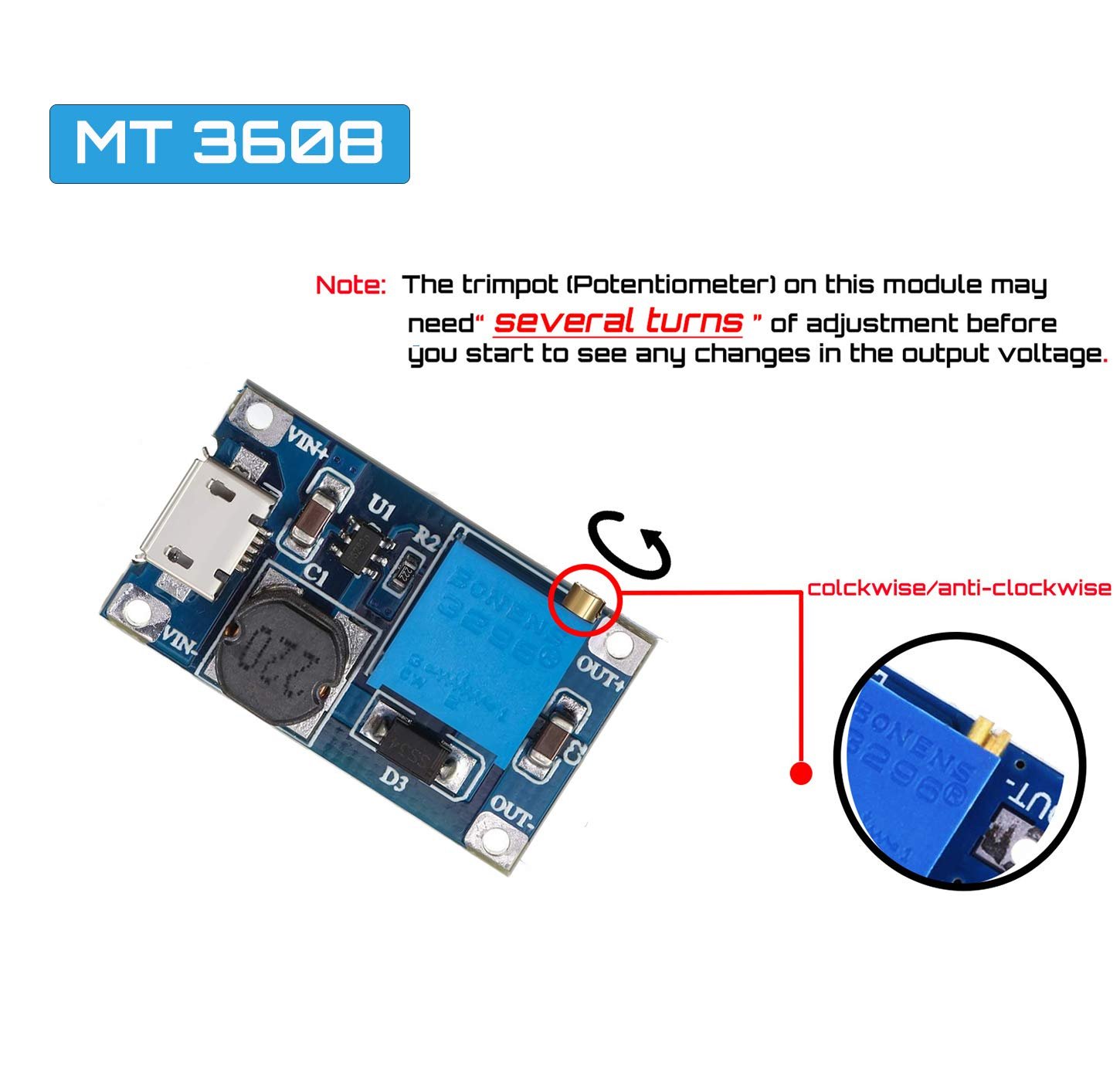

EASY TO OPERATE: This mini DC-DC voltage converter board , making it easy to get 9V 12V 18V 24V voltage by just connecting it with power adapter( Mobile/phone 5V charger can work and easily give you 12V output with 1A to 2A current according to charger), by adjusting potentiometer** 5V, 9V, 12V, 28V output can be achieved.

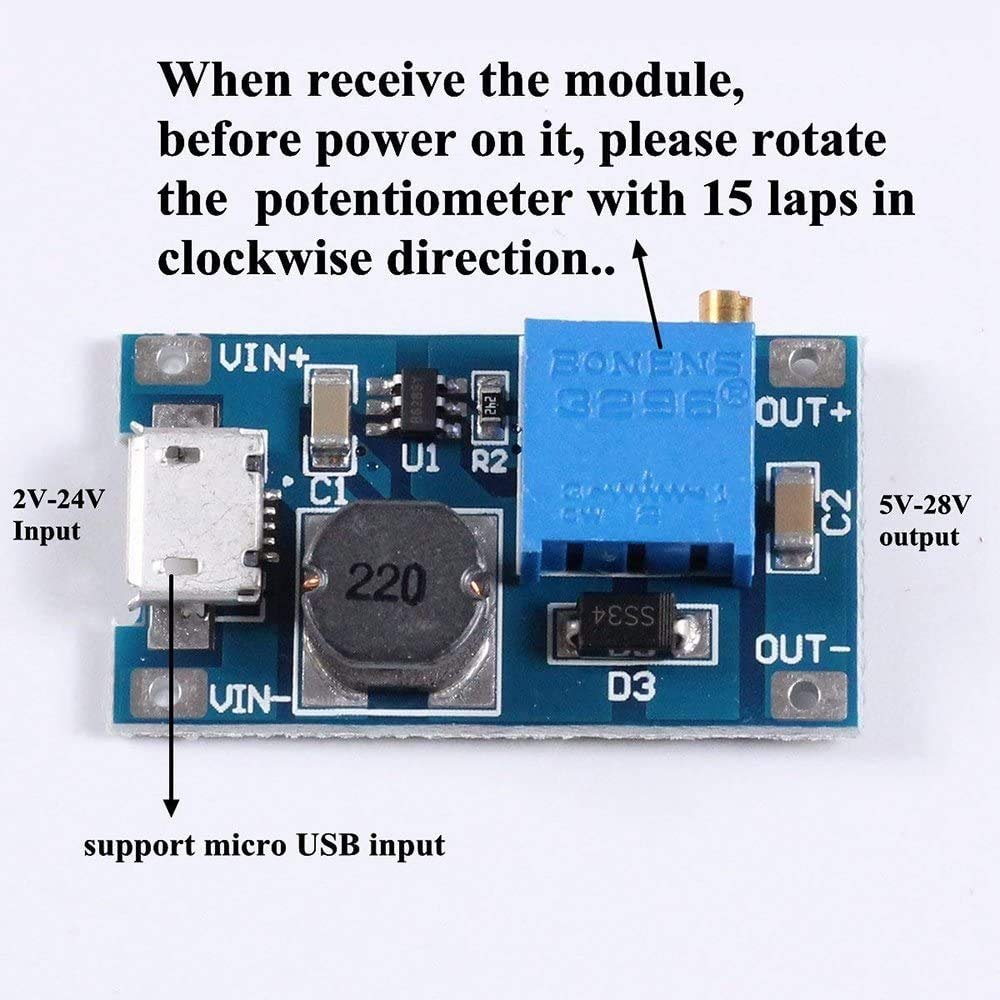

HIGH EFFICIENCY: DC 2-24V input and 5V-28V adjustable voltage output with max output current:2A , Dc to Dc step up converter is equipped with MT3608 voltage booster chip with high power conversion efficiency up to 93% .

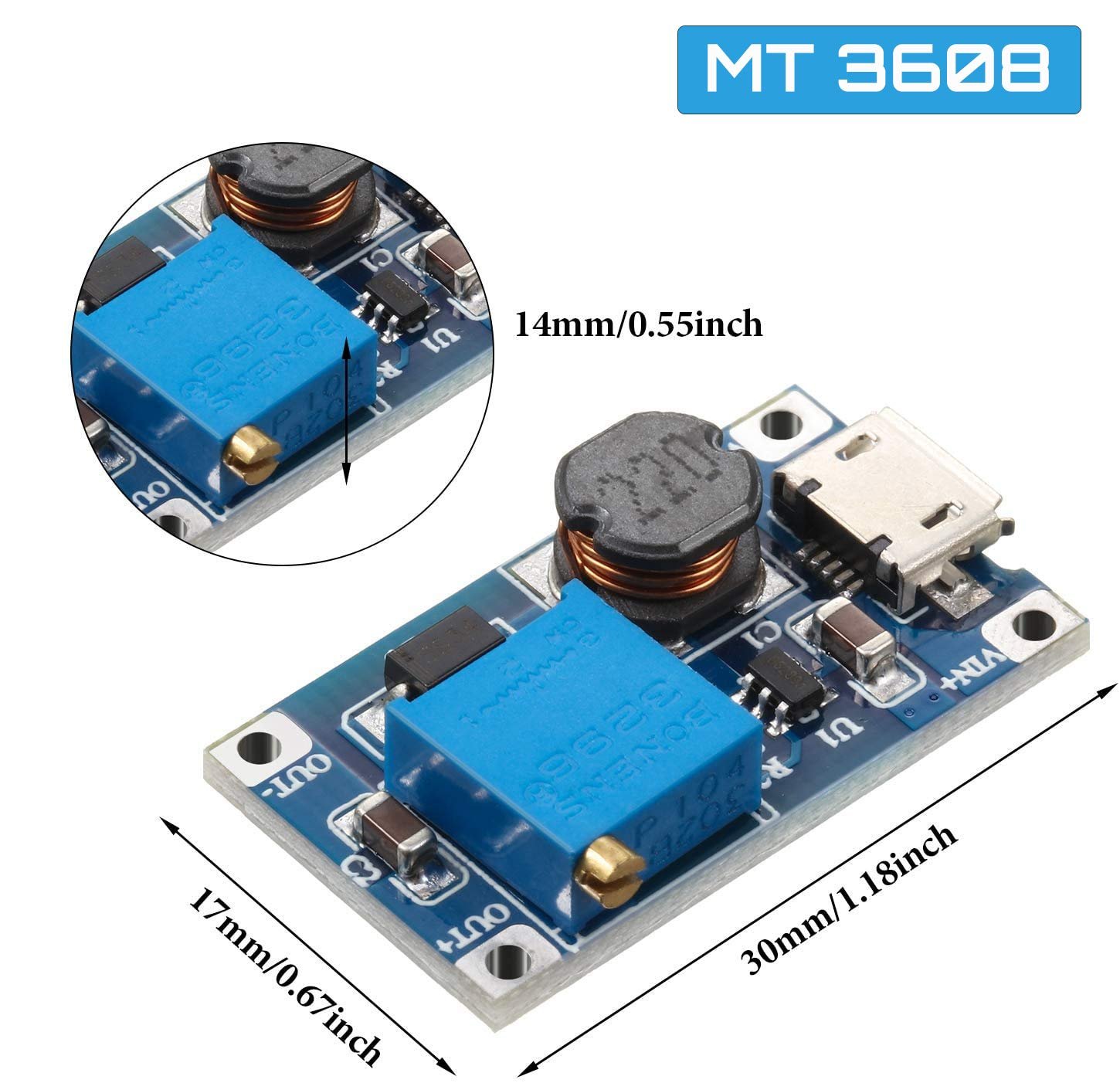

DIMENSION: Maximum output current of the adjustable voltage regulator is 2A, the size of board is 30 x 17 x 14 mm/ 1.18 x 0.67 x 0.55 inch (L x W x H), can be easily installed in various small equipment.
GOOD PROTECTION: With under-voltage lockout, current limiting, and thermal overload protection design, MT3608 can help prevent damage in the event of an output overload.
APPLICATIONS: Mt3608 module have wide area of application like it can be used with lithium/nimh/li-ion battery cell, power transformers, DIY adjustable regulated power supply, industrial equipment & machines, amplifier, stepper motor, L298a L293d A4988 l motor driver, drills, pumps, flasher , flickering lights, sensor, woofer/subwoofer & audiophile audio projects, inverter, eliminator, solar panel and etc.

10 Available

Add to Cart

Buy Now

SKU: TH2136TH206

Categories:Robotics, Sensor

Tags : MT3608 DC-DC Step Up, Power Supply Module

The MT3608 is a constant frequency, current mode step-up converter intended for small, low power applications.
The MT3608 switches at 1.2MHz and allows the use of tiny capacitors and inductors.
Internal soft-start results in small inrush current and extends battery life.
The MT3608 features automatic shifting to pulse frequency modulation mode at light loads.
The MT3608 includes under-voltage lockout, current limiting, and thermal overload protection to prevent damage in the event of an output overload.

Maximum Ratings

IN,EN Voltages: 0.3v-26v
Operating Temparature: -40°C to +85°C
Junction Temperature: 160°C
SW Voltage: -0.3V to 30V

FEATURES:

Integrated 80mΩ Power MOSFET
2V to 24V Input Voltage
1.2MHz Fixed Switching Frequency
Internal 4A Switch Current Limit
Adjustable Output Voltage
Internal Compensation
Up to 28V Output Voltage
Automatic Pulse Frequency Modulation mode at Light Loads
Up to 97?ficiency

APPLICATIONS:

Battery-Powered Equipment
Set-Top Boxed
LCD Bais Supply
DSL and Cable Modems and Routers
Networking cards powered from PCI or PCI express slots
