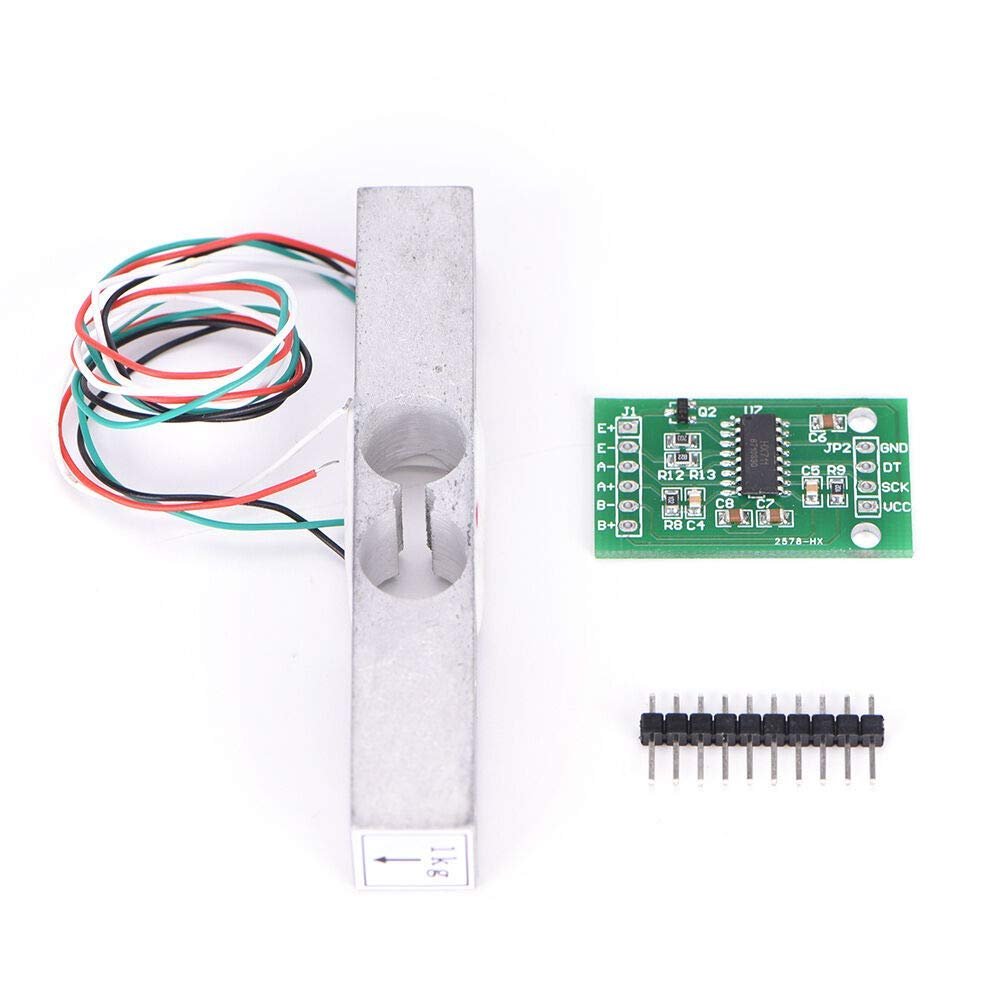

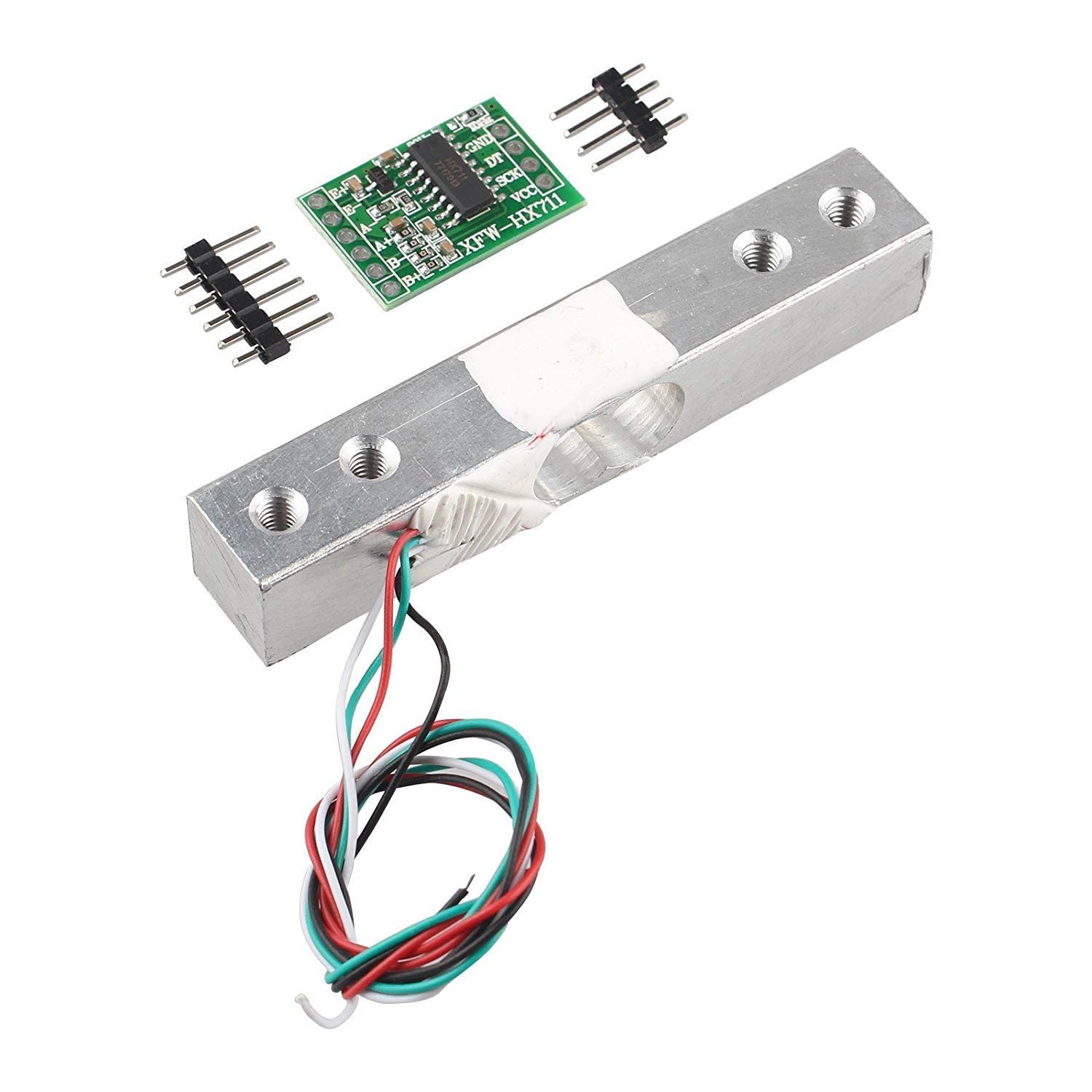

10kg Load Cell + HX711 Weight Weighing A/d Module Pressure Sensor Digital Portable Electronic Kitchen Scale Weight Weighing Sensor For Uno R3 Scale

Hx711 is a precision 24-bit analogto-digital converter (adc) designed for weigh scales and industrial control applications to interface directly with a bridge sensor. The input multiplexer selects either channel a or b differential input to the low-noise programmable gain amplifier (pga). Channel a can be programmed with a gain of 128 or 64, corresponding to a full-scale differential input voltage of ±20mv or ±40mv respectively, when a 5v supply is connected to avdd analog power supply pin. Channel b has a fixed gain of 32. Onchip power supply regulator eliminates the need for an external supply regulator to provide analog power for the adc and the sensor. Clock input is flexible. It can be from an external clock source, a crystal, or the on-chip oscillator that does not require any external component. On-chip poweron-reset circuitry simplifies digital interface initialization. There is no programming needed for the internal registers. All controls to the hx711 are through the pins.
