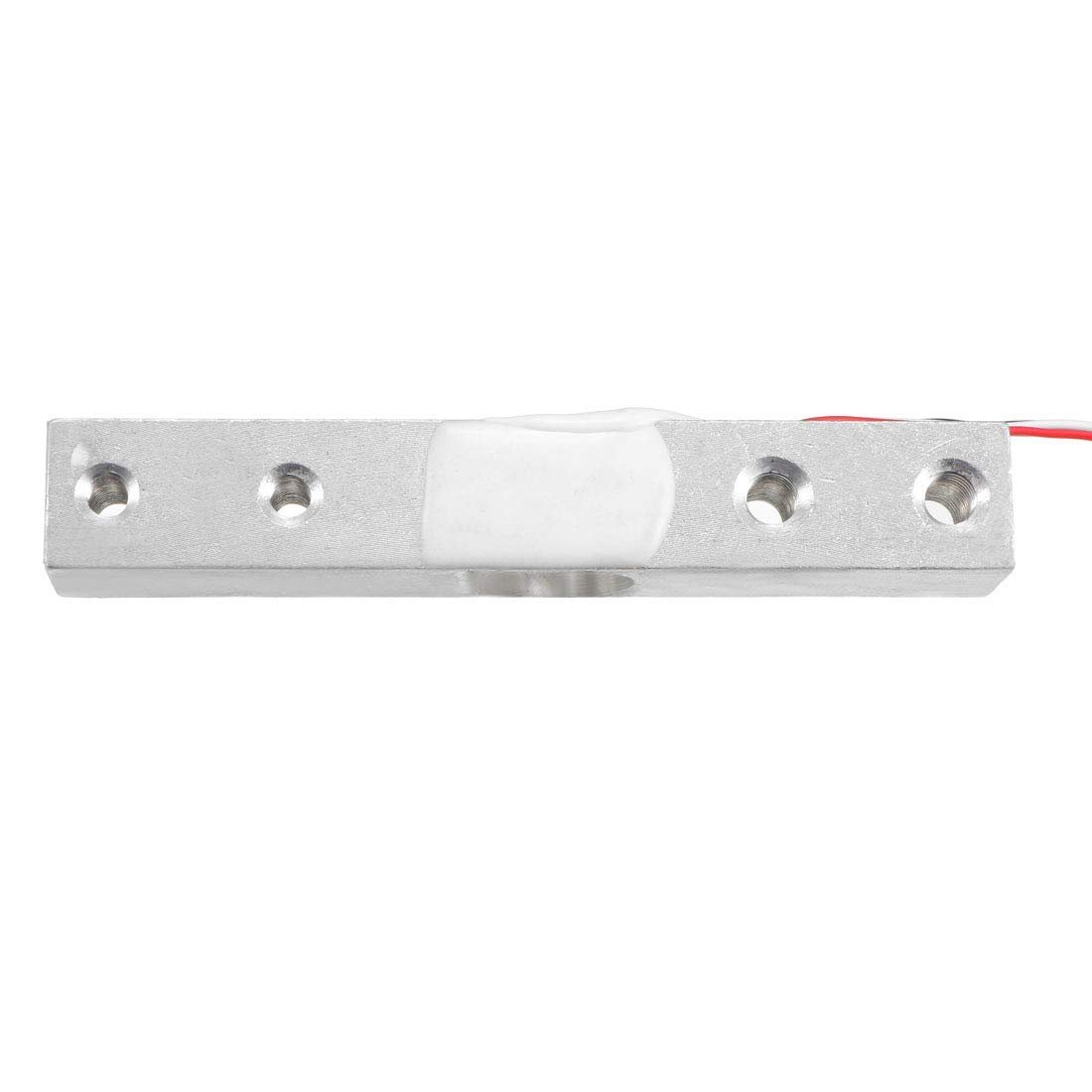

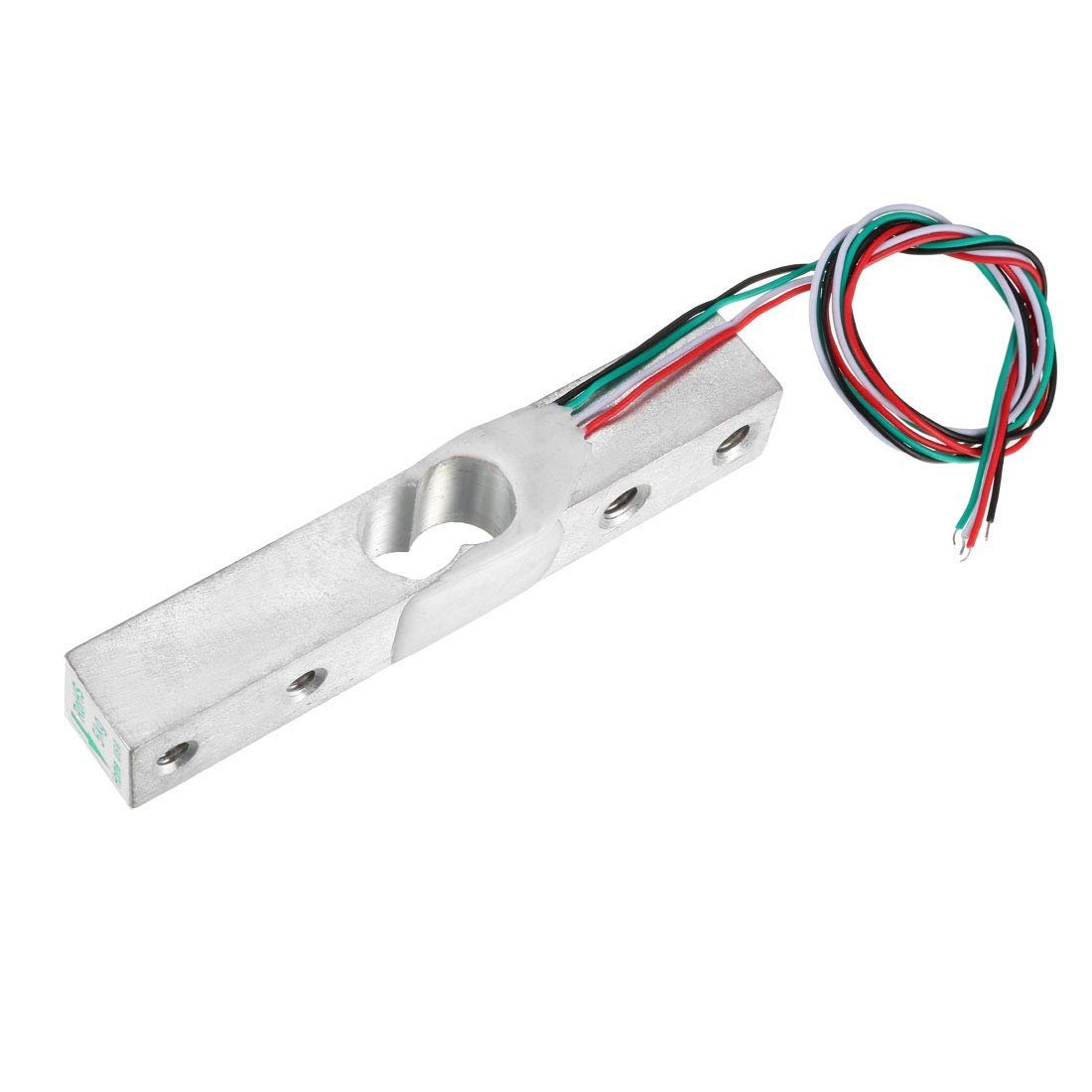

Load Cell Weighing Sensor with Wide BAR (5KG)

Brand: Robo Inventors

49 review

MRP : ~~600.00~~

Price : 300.00 FREE Delivery ( Inclusive of all taxes )

You Save: 300

Sold By: Unicorpse

Product Name : Load Cell;Model : C2F570;Rated /11lb;Rated Output : 0.7+/-0.1mv/v
Input Resistance : 1120 +/- 10 Ohm;Output Resistance : 1000 +/- 10 Ohm;Insulation Resistance : >2000 Ohm;Working Temperature : -20C~+65C
Compensated Temperature Range : -10C~+50C;Safety Overload : 120%F.S;Recommend Excitation Voltage : DC 5V;Max Excitation Voltage : DC 10V
Material : Aluminium Alloy;Color : Silver Tone;Weight : 22g;Package Content : 1 x Load Cell

10 Available

Add to Cart

Buy Now

SKU: TH2144TH216

Categories:Robotics, Sensor

Tags : Load Cell Weighing,Sensor ,(5KG)

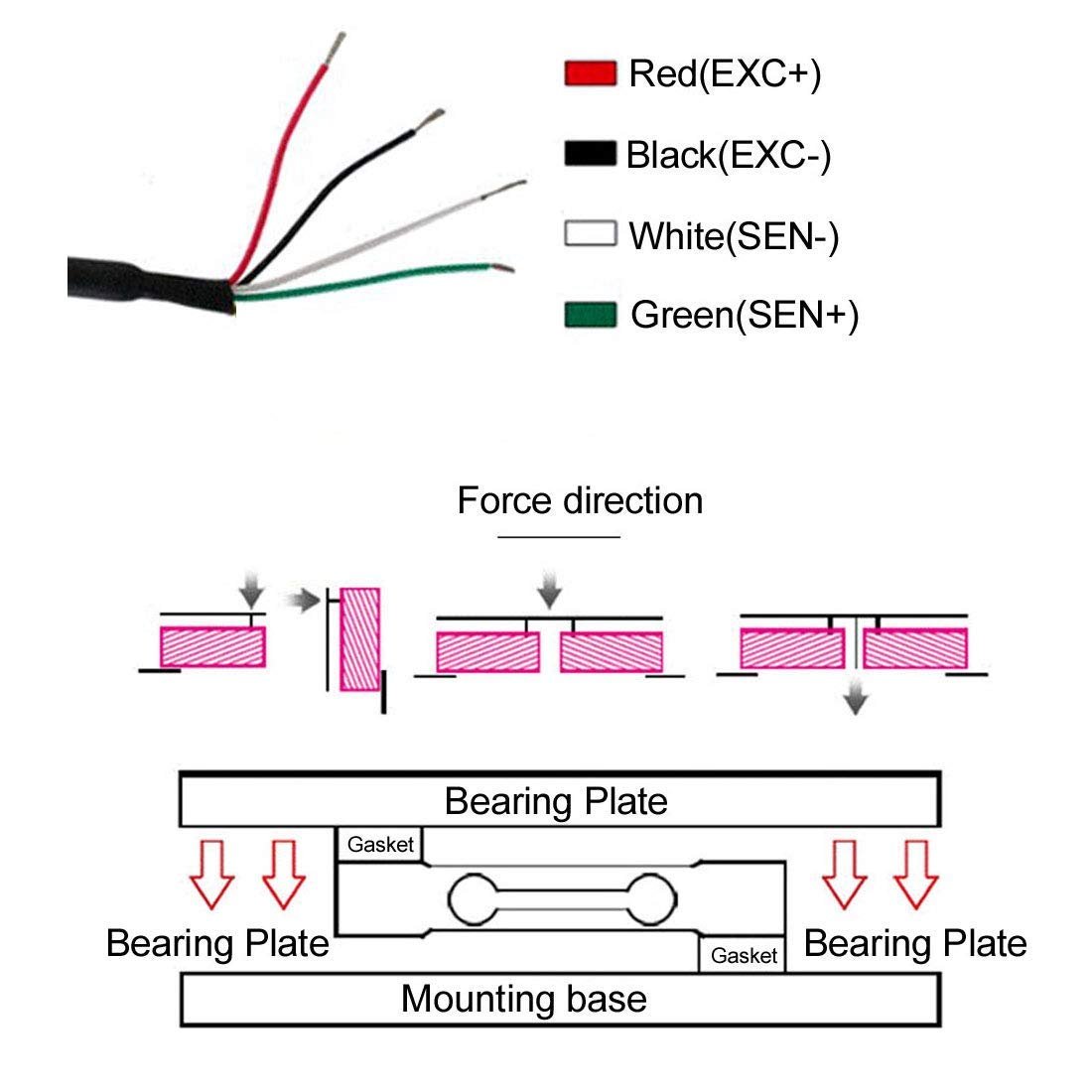

Weight Sensor Load Cell for C2F570 Kitchen Scale , Portable Scale ,Electronic Scales , Jewelry Scales One end of the sensor through the screw holes fixed and the other end to keep floating. Applied according to label directions direction of gravity. Special attention must not directly press the white plastic cover part, to avoid damaging the sensor. Notice: The red line connects power positive, and black connects power negative .The green connects signal positive, and white connects signal negative .
