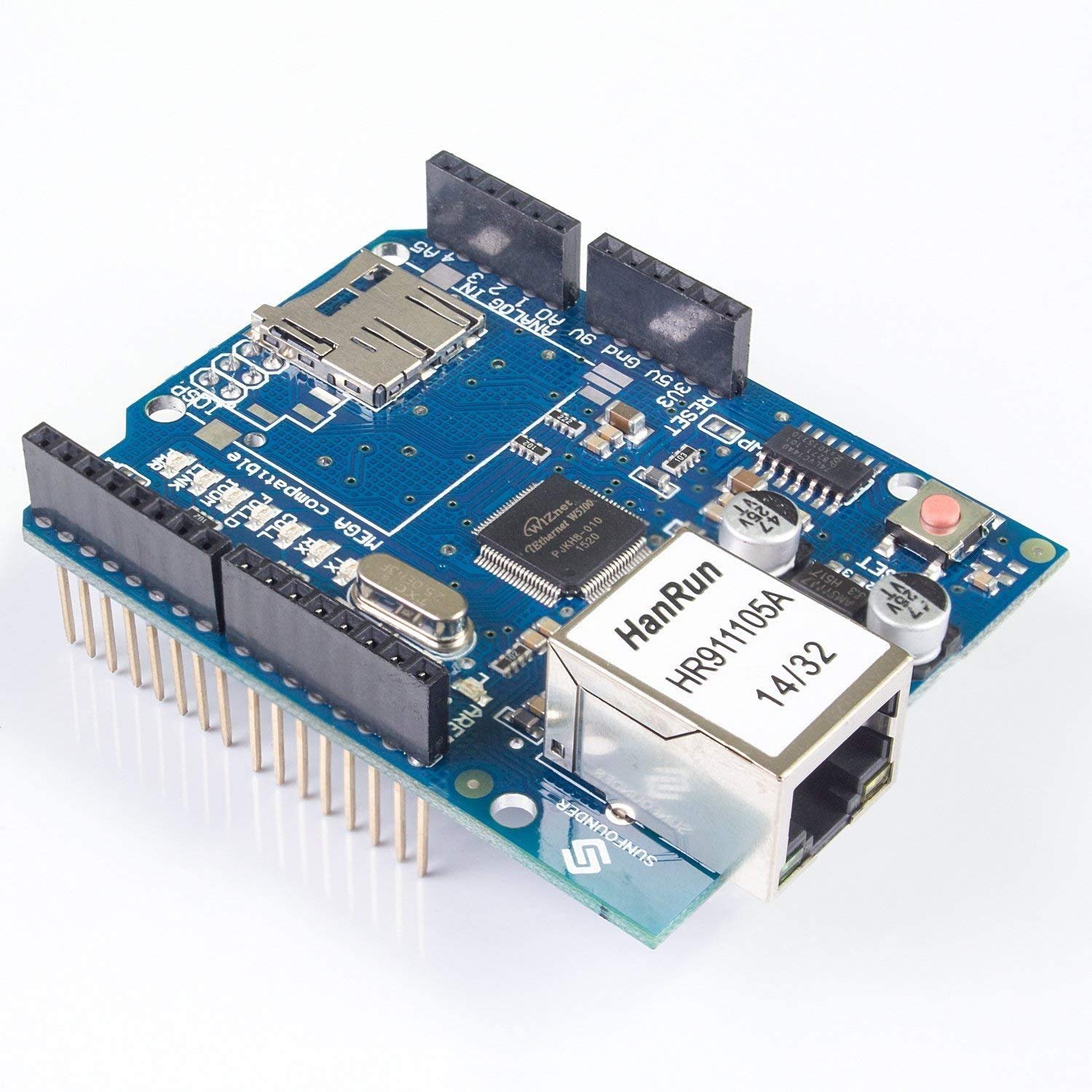

Ethernet Shield W5100 for Arduino Uno R3 Mega 2560

Brand: Robo Inventors

49 review

MRP : ~~1499.00~~

Price : 1299.00 FREE Delivery ( Inclusive of all taxes )

You Save: 200

Sold By: Unicorpse

The W5100 is a full-featured, single-chip Internet-enabled 10/100 Ethernet controller designed for embedded applications where ease of integration, stability, performance, area and system cost control are required.
The W5100 includes fully hardwired, market-proven TCP/IP stack and integrated Ethernet MAC & PHY. Hardwired TCP/IP stack supports TCP, UDP, IPv4, ICMP, ARP, IGMP and PPPoE which has been proven in various applications for several years.
The W5100 has been designed to facilitate easy implementation of Internet connectivity without OS. The W5100 is IEEE 802.3 10BASE-T and 802.3u 100BASE-TX compliant.
Compatible for Arduino Main board, Mega 1280, Mega 2560. Arduino official Ethernet Library. It adds a micro-SD card slot, which can be used to store files for serving over the network.

10 Available

Add to Cart

Buy Now

SKU: TH2251TH818

Categories:Robotics, Sensor

Tags : Ethernet Shield , Shield W5100 ,Arduino Uno R3,Mega 2560

Features:

- Support Hardwired TCP/IP Protocols : TCP, UDP, ICMP, IPv4 ARP, IGMP, PPPoE, Ethernet.

- 10BaseT/100BaseTX Ethernet PHY embedded.

- Support Auto Negotiation (Full-duplex and half duplex).

- Support Auto MDI/MDIX.

- Support ADSL connection (with support PPPoE Protocol with PAP/CHAP Authentication mode).

- Supports 4 independent sockets simultaneously.

- Not support IP Fragmentation.

- Internal 16Kbytes Memory for Tx/Rx Buffers.

- 0.18 µm CMOS technology.

- Operating temperature: -40 to 85 °C

- DC input current: ±5 mA

- 3.3V operation with 5V I/O signal tolerance.

- Support Serial Peripheral Interface(SPI MODE 0,3).

- Multi-function LED outputs (TX, RX, Full/Half duplex, Collision, Link, Speed).

- Size:7cm x 5.4cm x 2.4cm.

Applications:

The W5100 is well suited for many embedded applications, including:

- Home Network Devices: Set-Top Boxes, PVRs, Digital Media Adapters

- Serial-to-Ethernet: Access Controls, LED displays, Wireless AP relays, etc.

- Parallel-to-Ethernet: POS / Mini Printers, Copiers

- USB-to-Ethernet: Storage Devices, Network Printers

- GPIO-to-Ethernet: Home Network Sensors

- Security Systems: DVRs, Network Cameras, Kiosks

- Factory and Building Automations

- Medical Monitoring Equipments

- Embedded Servers

Package Included:

1 x W5100 Ethernet Shield.
